| Name: | Woven Two Colors Screen Printing Machine | Type: | UWL-C700 |
|---|---|---|---|
| Production Speed: | 20-120pcs/min | Bag Width: | 100-800mm |
| Bag Hight: | 200-600mm | Material Basis Weight: | 30-120g/㎡ |
| Power: | 380V/220V | Total Power: | 15KW |
| Overall Dimension: | 9600x1900x2100mm | Weight: | 3000Kg |
| High Light: | automatic tissue bag making machine,non woven bag manufacturing plant,non woven tissue bag machine |
||

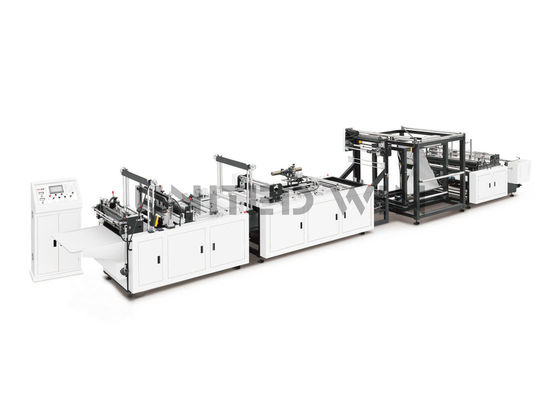

Multi-function Non Woven Box Bag Making Machine
Descripition:
This machine is suitable for raw material non woven fabric, and it can be used to process all kinds of non woven bags with different specifications, dfferent shapes, D-cut bag, vest bag, and Drawstring bag, etc.The machine is integrated with mechanical and electrical, and is operated with LCD touch screen. With step-by-step fixed length, photoelectric tracking, computer automatic positioning, computer automatic.Rectification, accurate, stable, automatic counting, can set counting alarm, automatic diling and other industrial control devices, so that the production of finished product seal line.Solid and beautiful tangent. High efficiency, is the high quality environmental protection bag you can use safely.
Feature:
1. This machine adopts Taiwan PLC touch screen,which can be edited.
2. Auto counting and stopping when setting numbers freely;
3. High voltage static processor and auto constant temperature heating controller;
4. Equipped with stepping motor(computer fixed length),manual unwinding magnetic powder tension controllr and auto rectifying deviation,photoelectric tracking.printing color mark track orientation,auto counting and alarming.auto punching etc.,which make it accurate and stable.
5. All aspect of the bags adopts thermal bonding by ultrasonic welding,such as bag edge folding,side sealing etc.which makes the machine fast and easy to operate,the products firm sealing,beautiful and decent.
Main configuration list :
| Type | UWL-C700 | UWL-C800 |
| Production Speed | 20-120pcs/min | 20-120pcs/min |
| Bag Width | 100-800mm | 100-800mm |
| Bag Hight | 200-600mm | 200-700mm |
| Material Basis Weight | 30-120g/㎡ | 30-120g/㎡ |
| Power | 380V/220V | 380V/220V |
| Total Power | 15KW | 18KW |
| Overall Dimension | 9600x1900x2100mm | 9800x2100x2300mm |
| Weight | 3000Kg | 3500Kg |
Applications:
Company Information:
FAQ:
1: Are you trading company or manufacturer?
We are factory.
2: How long is your delivery time?
Generally it is 5-10 days if the goods are in stock. Or it is 15-20 days if the goods are not in stock. It is according to quantity.
3: What should we charge for your engineer?
You should charge for the cost of our engineer's visa , air tickets, hotel, food ,and also their salary 100USD one day per person.
4: How long is your machine's warranty period?
All our machine have one year guarantee, starting from finished installation.
5: How could we do after one year warranty period?
We also can do service for you, but you need pay salary for my technician 80USD/day.
6: How could we do if the parts broken within warranty?
We would express the free replacement parts during the warranty date.
7: Does your engineer understand English?
Our engineer understand a little English. All our engineer have more than five years machine installation experience. In addition, they can use body language to communicate with customer.
8: Can you help us find any engineer in our location?
Of course, we will check and inform you as soon as possible.
9: How do we solve the machine problem after your engineer leaving?
Generally speaking, there will be no problem after finish installing. In case you have any problem. You can contact our sales at any time. Our engineer will take a solution video according to your description.
