| Name: | Woven T-shirt Bag Making Machine | Type: | UWL-A800 |
|---|---|---|---|
| Unwinding Width: | 550~800 Millimeter (Single Line) | Production Speed: | 160~240pcs/minute |
| Bag Hight: | 100~800 Millimeter | Bag Width: | 100~320 Millimeter |
| Material Basis Weight: | 30~100g/㎡ | Power: | 380V/220V |
| Total Power: | 18 Kilowatt | Overall Dimension: | 10.5*2.2*2.2m |
| Weight: | 3t | Computerized: | Yes |
| Key Selling Points: | Multifunctional | Certification: | CE/ISO9001 |
| Core Components: | Motor, PLC, Gear, Bearing | Warranty: | 1 Year |
| High Light: | polythene bag making machine,zip bag making machine,vest bag making machine |
||

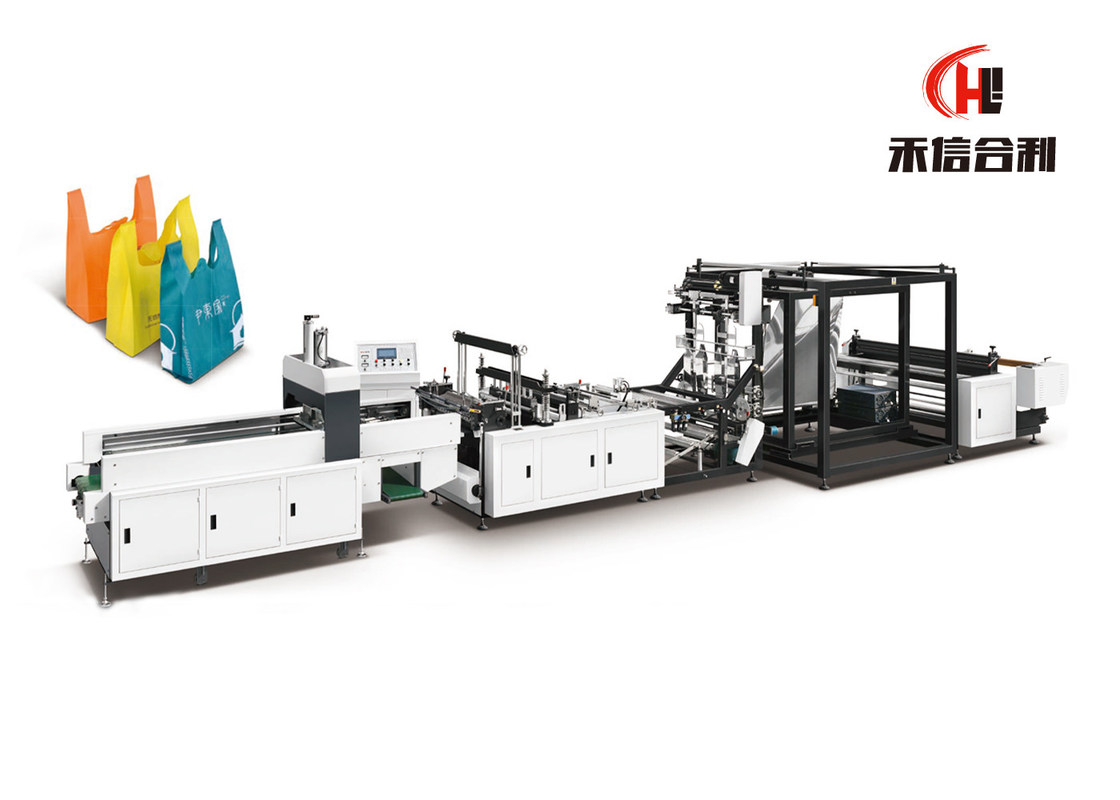

Eco-Friendly Non Woven T Shirt Bag Making Machine Fully Automatic Double Line Ultrasonic UWL-A800
Descipition:
This machine adopts mechanical, electrical, optical and pneumatic integration technology, suitable for non woven fabric, different specs of vest bag can be made by this machine.
Fearture:
1. Fabric Roll Unwinding
Auto loading material roll(lift by cylinders) Inflatable shaft to fix the fabric roll when machine working. Auto stop when material run out of Magnetic powder tension controller. Auto rectifying deviation system(EPC box and web guider). Bag mouth folding and sealing by ultrasonic welding. Cylinders to lift and fix the sealing mold. Custom-made sealing mould is available.
2. Fabric Cross Folding
Stainless steel(triangular form) folding device Manual web guider
3. Bag Bottom Gusset And Side Gusset Forming - compressed air input here
Two sets round wheels for making bag bottom gusset and side gusset. The blower removes waste fabric T-shirt bag sealing by ultrasonic welding
Main configuration list :
| Type | UWL-A800 |
| Unwinding Width | 550-800 millimeter (Single Line) |
| Production Speed | 160-240pcs/minute |
| Bag Height | 100-800 millimeter |
| Bag width | 100-320 millimeter |
| Material Basis Weight | 30-100g/㎡ |
| Power | 380V/220V |
| Total Power | 18 kilowatt |
| Overall Dimension | 10.5*2.2*2.2 m |
| Weight | 3000 kilogram |
Production Process:
Applications:
Company information:
FAQ:
1. Are you trading company or manufacturer?
We are factory.
2. How long is your delivery time?
Generally it is 5-10 days if the goods are in stock. Or it is 15-20 days if the goods are not in stock. It is according to quantity.
3. Does your engineer understand English?
Our engineer understand a little English. All our engineer have more than five years machine installation experience. In addition, they can use body language to communicate with customer.
4. How long is your machine's warranty period?
All our machine have one year guarantee, starting from finished installation.
5. How could we do after one year warranty period?
We also can do service for you, but you need pay salary for my technician 80USD/day.
6. How could we do if the parts broken within warranty?
We would express the free replacement parts during the warranty date.
7. What should we charge for your engineer?
You should charge for the cost of our engineer's visa , air tickets, hotel, food ,and also their salary 100USD one day per person.
8. How do we solve the machine problem after your engineer leaving?
Generally speaking, there will be no problem after finish installing. In case you have any problem. You can contact our sales at any time. Our engineer will take a solution video according to your description.
