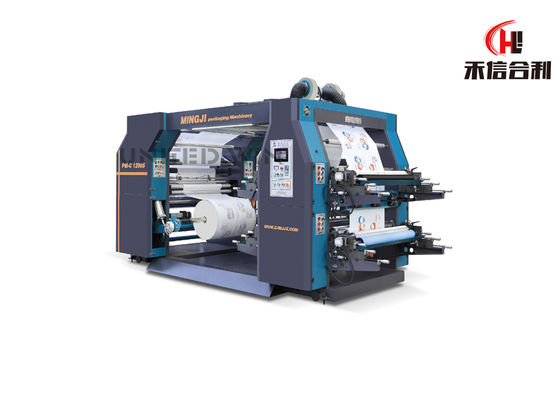

4 Color Automatic Flexo Printing Machine For Packing Bag

4 Color Automatic Flexo Printing Machine For Packing Bag
4 Color Automatic Flexo Printing Machine For Packing Bag
video play

Large Image :  4 Color Automatic Flexo Printing Machine For Packing Bag

Product Details:
Place of Origin: CHINA
Brand Name: unitedwin
Model Number: UWPM-B1400
Payment & Shipping Terms:
Minimum Order Quantity: 1SET
Price: USD
Delivery Time: 30 working days
Payment Terms: L/C, T/T
Detailed Product Description
Type: UWPM-B1400 Max Material Width: 1350mm
Max Length Printing: 10-850mm Maximum Diameter Of Coil: 1000mm
Printing Speed: 10-70m/min Plate Thickness: 30-200g
Total Power: 30kw Weight: 3500kg
Dimensions: 4800*2170mm*2700mm
High Light:

4 color flexo printing machine


70m/min flexo printing machine


4 color flexographic printing machine

Automatic non-woven printing machine, flexo printing machine, paper cup printing machine​




Introduce sensitization resin as flexible printing plate, suitable for printing such packing materials as polyethylene, polypropylene bag, cellophane and roll paper, cotton fabric etc. It is a kind of ideal printing equipment for producing paper packing bag for food, supermarket hand bag, vest bag and clothes bag, etc.

1. Easy operation, flexible starting, accurate color register.
2. The meter counter can set printing quantity according to the requirements. Stop the machine automatically at the quantity or when the material is cut off.
3. Pneumatic printing cylinder lift and lower, it will stir the printing ink automatically after lifting.
4. The printing ink is spread by the anilox cylinder with even ink color.
5. Reliable drying system coordinated with high-speed rotation, it will automatically break circuit when the machine stops.
6. 360°continuous and adjustable longitudinal register device.
7. The frequency control of motor speed adapts to different printing speeds.
8. There are Jogging/Stopping buttons on the plate roller base and material rolling rack so as to make it easy operate the machine when the plate is installed.
9. Magnetic powder brake for unwinding tension control. Magnetic powder clutch for rewinding tension control.



Main configuration list :


Type UWPM-B1400
Max material width 1350mm
Max Length Printing 10-850mm
Material Basis Weight 30-120g/㎡
Power Supply 380V/220V
Total Power 30kw
Overall Dimension 4800*2170mm*2700mm
Weight 3500kg








1. Are you trading company or manufacturer?
We are factory.

2. How long is your delivery time?
Generally it is 5-10 days if the goods are in stock. Or it is 15-20 days if the goods are not in stock. It is according to quantity.

3. What should we charge for your engineer?
You should charge for the cost of our engineer's visa , air tickets, hotel, food ,and also their salary 100USD one day per person.


4. How long is your machine's warranty period?
All our machine have one year guarantee, starting from finished installation.

5. How could we do after one year warranty period?
We also can do service for you, but you need pay salary for my technician 80USD/day.

6. How could we do if the parts broken within warranty?
We would express the free replacement parts during the warranty date.

7. Does your engineer understand English?
Our engineer understand a little English. All our engineer have more than five years machine installation experience. In addition, they can use body language to communicate with customer.

8. Can you help us find any engineer in our location?
Of course, we will check and inform you as soon as possible.

9. How do we solve the machine problem after your engineer leaving?
Generally speaking, there will be no problem after finish installing. In case you have any problem. You can contact our sales at any time. Our engineer will take a solution video according to your description.
