Product Details:
Payment & Shipping Terms:
|
| Name: | Multi-functional Non Woven D-cut Bag Making Machine | Production Speed: | 20-120pcs/minute |
|---|---|---|---|
| Material Basis Weight: | 30-120g/㎡ | Power Supply: | 380V/220V |
| Total Power: | 12KW | Bag Height: | 100-600millimeter |
| Bag Width: | 100-800millimeter | Overall Dimension: | 7600*1900*2100millimeter |
| Weight: | 2000 Kilogram | Computerized: | Yes |
| Warranty: | 1 Year | Certification: | CE/ISO9001 |
| Core Components: | Motor, PLC | ||
| High Light: | non woven carry bag machine,non woven bag manufacturing unit,non woven carry bag manufacturing machine |
||

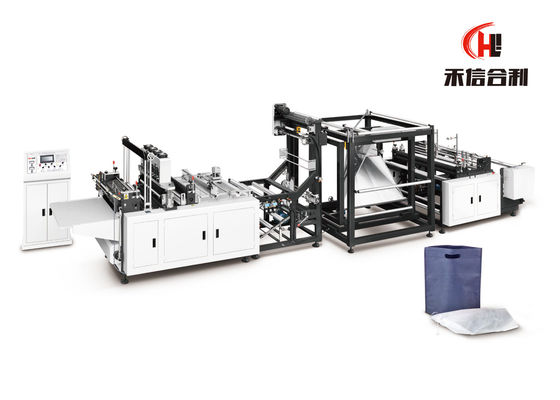

Multi-functional Nonwoven D-cut Bag Carry Bag Making Machine UWL-B700
Descripition:
This machine adopts mechanical, electrical, optical and pneumatic integration technology, suitable for non-woven fabric, different specs of non woven bags can be made by this machine.
Features:
1. Auto loading material roll(lift by cylinders) Inflatable shaft to fix the fabric roll when machine working. Auto stop when material run out of Magnetic powder tension controller. Auto rectifying deviation system(EPC box and web guider). Bag mouth folding and sealing by ultrasonic welding. Cylinders to lift and fix the sealing mold custom-made sealing mould is available.
2. Stainless steel(triangular form) folding device Manual web guider.
3. Two sets round wheels for making bag bottom gusset and side gusset. The blower removes waste fabric T-shirt bag sealing by ultrasonic welding.
4. Online D-cut punching, drawstring bag punching bag side sealing by ultrasonic welding
5. Double stepping motor feeding system for bag length fix. Man machine interface:touch screen. Motion control:PLC
Main configuration list :
| Type | UWL-B700 | If you have different requirements, please let us know, and we will provide you with customized solutions based on the actual situation of the machine. |
| Production Speed | 20-120pcs/minute | |
| Bag Width | 100-800 millimeter | |
| Bag Height | 200-600 millimeter | |
| Material Basis Weight | 30-120g/㎡ | |
| Power Supply | 380V/220V | |
| Total Power | 12kilowatt | |
| Overall Dimension | 7600*1900*2100 millimeter | |
| Weight | 2000 kilogram |
Applications:
Company information:
FAQ:
1. Are you trading company or manufacturer?
We are factory.
2. How long is your delivery time?
Generally it is 5-10 days if the goods are in stock. Or it is 15-20 days if the goods are not in stock. It is according to quantity.
3. What should we charge for your engineer?
You should charge for the cost of our engineer's visa , air tickets, hotel, food ,and also their salary 100USD one day per person.
4. How long is your machine's warranty period?
All our machine have one year guarantee, starting from finished installation.
5. How could we do after one year warranty period?
We also can do service for you, but you need pay salary for my technician 80USD/day.
6. How could we do if the parts broken within warranty?
We would express the free replacement parts during the warranty date.
7. Does your engineer understand English?
Our engineer understand a little English. All our engineer have more than five years machine installation experience. In addition, they can use body language to communicate with customer.
8. Can you help us find any engineer in our location?
Of course, we will check and inform you as soon as possible.
9. How do we solve the machine problem after your engineer leaving?
Generally speaking, there will be no problem after finish installing. In case you have any problem. You can contact our sales at any time. Our engineer will take a solution video according to your description.
