| Name: | Woven Two Colors Screen Printing Machine | Type: | UWL-C700 |
|---|---|---|---|
| Production Speed: | 20-120pcs/minute | Bag Width: | 100-800 Millimeter |
| Bag Hight: | 200~600 Millimeter | Material Basis Weight: | 30~120g/㎡ |
| Power: | 380V/220V | Total Power: | 15 Kilowatt |
| Overall Dimension: | 9.6*1.9*2.1m | Weight: | 3000kilogram |
| Condition: | New | Multifunction: | For All Kinds Of Roll Material |
| Warranty: | 1 Year | Marketing Type: | New Product 2020 |
| High Light: | ziplock bag making machine,mini non woven bag making machine,non bag machine |
||

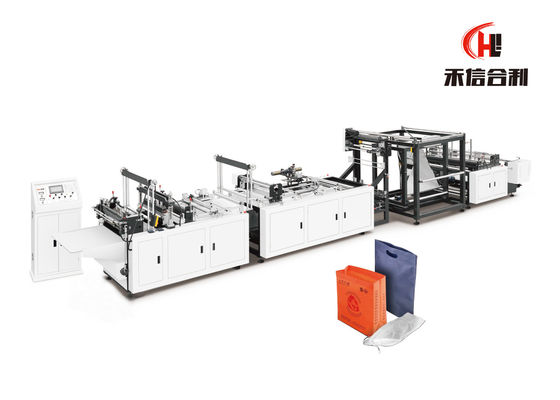

Non Woven Tissue Multi-function Non-woven Box Bag Making Machine UWL-C700 For all kinds of roll material
Descripition:
This machine is suitable for raw material non woven fabric, and it can be used to process all kinds of non woven bags with different specifications, dfferent shapes, D-cut bag, vest bag, and Drawstring bag, etc.The machine is integrated with mechanical and electrical, and is operated with LCD touch screen. With step-by-step fixed length, photoelectric tracking, computer automatic positioning, computer automatic.Rectification, accurate, stable, automatic counting, can set counting alarm, automatic diling and other industrial control devices, so that the production of finished product seal line.Solid and beautiful tangent. High efficiency, is the high quality environmental protection bag you can use safely.
Feature:
1. Fabric Roll Unwinding
Auto loading material roll(lift by cylinders) Inflatable shaft to fix the fabric roll when machine working. Auto stop when material run out of magnetic powder tension controller. Auto rectifying deviation system(EPC box and web guider) Bag mouth folding and sealing by ultrasonic welding. Cylinders to lift and fix the sealing mold. Custom-made sealing mould is available.
2. Fabric Cross Folding
Stainless steel(triangular form) folding device manual web guider
3. Bag Side Sealing, Cutting, Collection

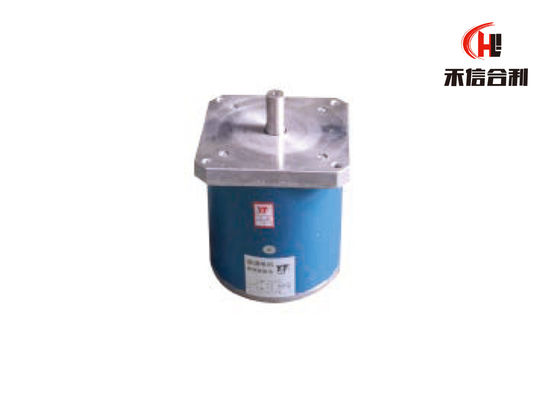

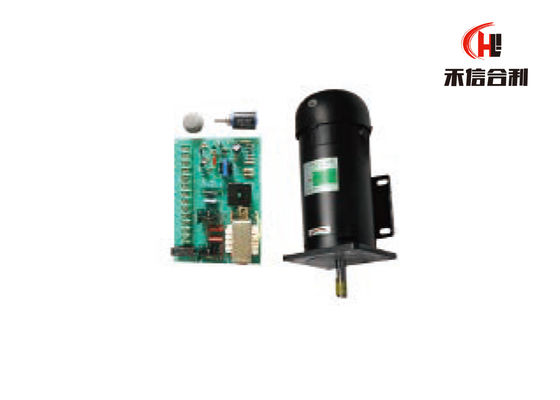

Adjustable photoelectric sensor for printing color mark tracking( it can be turned on/off on the touch screen). Online D-cut punching, drawstring bag punching Bag side sealing by ultrasonic welding system. Durable cold cutter Sealing mould with heating device inside(temperature control by thermal indicator) static eliminator device. Double stepping motor feeding system for bag length fix. Man machine interface:touch scree.
Main configuration list :
| Type | UWL-C700 |
| Production Speed | 20-120pcs/min |
| Bag Width | 100-800 millimeter |
| Bag Hight | 200-600 millimeter |
| Material Basis Weight | 30-120g/㎡ |
| Power | 380V/220V |
| Total Power | 15 kilowatt |
| Overall Dimension | 9.6*1.9*2.1m |
| Weight | 3000kilogram |
Applications:
Company information:
FAQ:
1. Are you trading company or manufacturer?
We are factory.
2. How long is your delivery time?
Generally it is 5-10 days if the goods are in stock. Or it is 15-20 days if the goods are not in stock. It is according to quantity.
3. What should we charge for your engineer?
You should charge for the cost of our engineer's visa , air tickets, hotel, food ,and also their salary 100USD one day per person.
4. How long is your machine's warranty period?
All our machine have one year guarantee, starting from finished installation.
5. How could we do after one year warranty period?
We also can do service for you, but you need pay salary for my technician 80USD/day.
6. How could we do if the parts broken within warranty?
We would express the free replacement parts during the warranty date.
7. Does your engineer understand English?
Our engineer understand a little English. All our engineer have more than five years machine installation experience. In addition, they can use body language to communicate with customer.
8. Can you help us find any engineer in our location?
Of course, we will check and inform you as soon as possible.
9. How do we solve the machine problem after your engineer leaving?
Generally speaking, there will be no problem after finish installing. In case you have any problem. You can contact our sales at any time. Our engineer will take a solution video according to your description.
